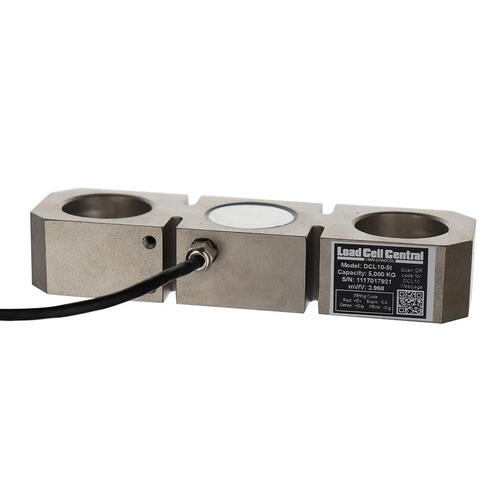

Model DCL10: Tension Link Load Cell / Crane Scale

Tension Link Load Cell / Crane Scale

Load Cell Central’s DCL10 is a versatile tension link load cell designed for use in harsh environments.  Employed in a wide variety of lift tests, towing tension, cable tension, crane overload limiters, crane scales, hoist scales, and tensile testing systems, the DCL10’s rugged and convenient link design has lent itself to a never-ending list of applications.  Precision manufactured from alloy steel and nickel-plated, the DCL10 passes an environmental IP rating of IP67 for use outdoors.  With a non-linearity of less than 0.03% of full scale, the DCL10 is an industry leader in tension link accuracy.  When coupled with a Load Cell Central digital indicator or signal conditioner, the DCL10 becomes a full weighing system with options like digital displays, large 6” remote displays, 4-20mA output, 0-10V output, RS232, RS485, relay control, or data logging.  When ordered with a Load Cell Central calibration, you will receive a full-scale calibration, complete with a 5 point run you can rely on.  With high accuracy and a rugged design, the DCL10 will save you time and money.

Capacities

Ranging from 1,000 - 120,000 KG (custom capacities also available)

Have a unique application

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
DCL10-1t1,000 kgAlloy Steel Tension Link Load Cell$410.00
increase
decrease
DCL10-2t2,000 kgAlloy Steel Tension Link Load Cell$433.00
increase
decrease
DCL10-5t5,000 kgAlloy Steel Tension Link Load Cell$473.00
increase
decrease
DCL10-10t10,000 kgAlloy Steel Tension Link Load Cell$793.00
increase
decrease
DCL10-20t20,000 kgAlloy Steel Tension Link Load Cell$1,220.00
increase
decrease
DCL10-30t30,000 kgAlloy Steel Tension Link Load Cell$2,029.00
increase
decrease
DCL10-50t50,000 kgAlloy Steel Tension Link Load Cell$2,522.00
increase
decrease
DCL10-75t75,000 kgAlloy Steel Tension Link Load Cell$4,730.00
increase
decrease
DCL10-100t100,000 kgAlloy Steel Tension Link Load Cell$5,197.00
increase
decrease
DCL10-customCustom Alloy Steel Tension Link Load Cell$
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
G2130-1tCrosby Shackle for DCL10-1t Load Cell$13.94

G2130-2tCrosby Shackle for DCL10-2t Load Cell$24.65

G2130-6.5tCrosby Shackle for DCL10-5t Load Cell (Do Not Exceed Load Cell Capacity)$72.20

G2130-12tCrosby Shackle for DCL10-10t Load Cell (Do Not Exceed Load Cell Capacity)$172.20

G2130-25tCrosby Shackle for DCL10-20t Load Cell (Do Not Exceed Load Cell Capacity)$418.00

G2130-35tCrosby Shackle for DCL10-30t Load Cell (Do Not Exceed Load Cell Capacity)$602.00

G2140-55tCrosby Shackle for DCL10-50t Load Cell (Do Not Exceed Load Cell Capacity)$1,059.00

add to cart

dcl10 specifications

dcl10 diagramdcl10 dimensions

Brochures

Options

  • Options Cable Length
  • Thru-Hole diameter sizes
  • 0-10V or 4-20mA output
  • Telemetry system for wireless operation
crane load cell scale

Tension link load  cells are typically used with a shackle at either end of the load cell, allowing for easy connection in most rigging situations.
