Model WL-CTL2: Wireless Tension Link / Crane Load Cell

The WL-CTL2 wireless tension link load cell is perfectly suited for weighing and lifting applications, including use with cranes, hoists, and winches where traditional cabled load cells are impractical - either due to risk of cable damage or safety concerns about human proximity to the load cell during operation. When paired with the WDD1 wireless LCD display or the WSLS-S1-2 receiver, this load cell offers a wireless line of sight communication range of 100-200 meters, which can vary based on environmental conditions.  The battery life depends on internal settings ranging from 24 hours up to 5 years. The load cell is manufactured from heat-treated alloy steel and is sealed to IP66 which makes it suitable for use outdoors.

We have a variety of crane load cells and wireless scales available.

Capacities

10,000; 25,000; 50,000; 75,000; 100,000; 150,000 lbs

Higher capacity and stainless steel load cells are also available.

Reviews

There are no reviews yet for this product. Write a Review

Share this page

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Price	Qty.
WL-CTL2-10K	10,000 lb	Wireless Tension Link Load Cell / Crane Scale	$2,525.00	Quantity
WL-CTL2-25K	25,000 lb	Wireless Tension Link Load Cell / Crane Scale	$2,595.00	Quantity
WL-CTL2-50K	50,000 lb	Wireless Tension Link Load Cell / Crane Scale	$3,360.00	Quantity
WL-CTL2-75K	75,000 lb	Wireless Tension Link Load Cell / Crane Scale	$3,395.00	Quantity
WL-CTL2-100K	100,000 lb	Wireless Tension Link Load Cell / Crane Scale	$3,430.00	Quantity
WL-CTL2-150K	150,000 lb	Wireless Tension Link Load Cell / Crane Scale	$4,555.00	Quantity

Additional Options
Part No.	Description	Price	Qty.
T24-HS	Single Channel Wireless Handheld Display	$720.00
T24-HA	Up to 12 Channel Wireless Display with Summing Feature	$1,030.00
TR100-CA	Leather Carry Case for T24-HS & T24-HA	$65.00
T24-BSue	Wireless Receiver for Computer, USB Connection Allows Viewing & Logging Load Cell Data	$485.00
G2130-6.5t	Crosby Bow Shackle for WL-CTL2-10K lb (Do Not Exceed Load Cell Capacity)	$115.00
G2130-13.5t	Crosby Bow Shackle for WL-CTL2-25K lb (Do Not Exceed Load Cell Capacity)	$365.00
G2130-25t	Crosby Bow Shackle for WL-CTL2-50K lb (Do Not Exceed Load Cell Capacity)	$655.00
G2130-35t	Crosby Bow Shackle for WL-CTL2-75K lb (Do Not Exceed Load Cell Capacity)	$945.00
G2140-55t	Crosby Bow Shackle for WL-CTL2-100K lb (Do Not Exceed Load Cell Capacity)	$1,700.00
G2140-85t	Crosby Bow Shackle for WL-CTL2-100K lb (Do Not Exceed Load Cell Capacity)	$2,910.00
1450	Pelican Carry Case for WL-CTL2-10K & 25K for Load Cell and Indicator	$260.00
1550	Pelican Carry Case for WL-CTL2-50K & 75K for Load Cell and Indicator	$370.00
1550-HDF	Pelican Carry Case with High Density Custom Foam for WL-CTL2-100K for Load Cell and Indicator	$440.00
1560-HDF	Pelican Carry Case with High Density Custom Foam for WL-CTL2-150K for Load Cell and Indicator	$555.00

Brochures

• WL-CTL2 Brochure 297kb

Features

• Combined error 0.25% of full scale
• Operating temp. -35 to 65C
• Wide range of capacities
• Safe overload 200% of full scale
• Toll Free Technical Support 1-800-LOADCEL
• Ultimate overload 500% of full scale
• Up to 200 meters wireless range

Options

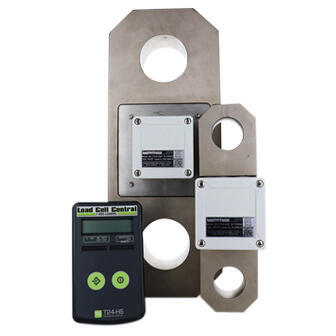

• WDD1 LCD display (pictured above)
• Custom capacities
• WSLS-S1-2 Receiver to work with any standard load cell display
• Shackles
• Stainless steel load cell
• Pelican® carry case
