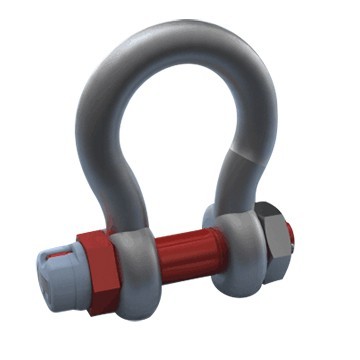

Model WL-STLC: Wireless Load Shackle

Wireless Load Shackle

Except for the small electronics package the WL-STLC wireless load shackle (tension link load cell) is identical to the cabled version of our load shackle model STLC.  Starting with a Crosby™ bow shackle G-2130 (12 to 25te) or G-2140 (40 to 400te), we manufacture a stainless steel load pin load cell to fit the shackle.  A centralizing bobbin (shown on the drawing in the brochure) is optional for applications in which the load applied to the load pin isn't centered or evenly loading the pin.  The WL-STLC load shackle is sealed to IP67 making it suitable for outdoor and offshore environments.  With a clear line of sight, a wireless range of up to 600 meters (1,970 feet) is achieved.  A single-channel wireless handheld indicator model T24-HS can be supplied for the operator to view the weight on the wireless load shackle.  Alternatively, the T24-HA multi-channel display can be used to monitor up to 12 WL-STLC load shackles, you can scroll through the channels individually and the sum of all channels.

Capacities

(tonne)  12, 17, 25, 40, 55, 85, 120, 150, 200, 300, 400

Brochures

Features

  • Up to 600 meter line of sight wireless range
  • Combined error <±1% of full scale (typically)
  • Compensated temp. -20 to 50ºC
  • Safe overload 150% of full scale
  • Ultimate overload 300% of full scale

Options

  • Centralizing load bobbin
  • Single or multiple channel handheld indicator
  • T24-BSu base station with USB connection to PC or laptop
  • Large-digit scoreboard
  • Pelican® carry case

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.CapacityDescriptionStatusPriceQty.
WL-STLC-12t12,000 kgWireless Shackle Load CellCall for Lead Time$3,560.00
increase
decrease
WL-STLC-17t17,000 kgWireless Shackle Load CellCall for Lead Time$4,000.00
increase
decrease
WL-STLC-25t25,000 kgWireless Shackle Load CellCall for Lead Time$4,275.00
increase
decrease
WL-STLC-40t40,000 kgWireless Shackle Load CellCall for Lead Time$4,000.00
increase
decrease
WL-STLC-55t55,000 kgWireless Shackle Load CellCall for Lead Time$5,350.00
increase
decrease
WL-STLC-85t85,000 kgWireless Shackle Load CellCall for Lead Time$6,500.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
CB-STLC-12tCentralising Bobbin to Distribute Load Evenly on Shackle Pin1 available$195.00
increase
decrease
CB-STLC-17tCentralising Bobbin to Distribute Load Evenly on Shackle PinCall for Lead Time$240.00
increase
decrease
CB-STLC-25tCentralising Bobbin to Distribute Load Evenly on Shackle PinCall for Lead Time$285.00
increase
decrease
CB-STLC-40tCentralising Bobbin to Distribute Load Evenly on Shackle PinCall for Lead Time$285.00
increase
decrease
CB-STLC-55tCentralising Bobbin to Distribute Load Evenly on Shackle PinCall for Lead Time$380.00
increase
decrease
CB-STLC-85tCentralising Bobbin to Distribute Load Evenly on Shackle PinCall for Lead Time$510.00
increase
decrease
T24-HSSingle Channel Wireless Handheld Display1 available$720.00
increase
decrease
T24-HAUp to 12 Channel Wireless Display with Summing Feature1 available$1,135.00
increase
decrease
T24-BSueWireless Receiver for Computer, USB Connection Allows Viewing & Logging Load Cell Data1 available$530.00
increase
decrease
