Model PCD: Donut Load Cell

Donut Load Cell

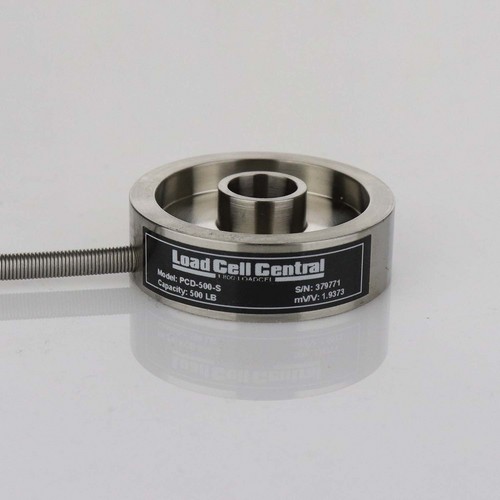

Load Cell Central's Model PCD donut load cell features a 1.5" O.D., and I.D.'s from 1/8" to 3/8" with a thru-hole design perfect for compression applications which require the load structure to pass directly through the load cell. Such applications include bolt force measurements and clamping forces. This donut load cell performs within a maximum full scale non-linearity and hysteresis of 0.5%.  For optimum performance, these cells must be mounted between load surfaces which are machined flat and parallel.

Capacities

(lb)  100, 250, 500, 1K, 2K

Brochures

Through Hole Load Cell Model Comparison

Model Capacity Range (lb) O.D. I.D. Range
RCD 50 to 500 1" 1/8" & 3/16"
PCD 100 to 2,000 1.5" 1/8" to 3/8"
TCD 250 to 10,000 2" 1/8" to 5/8"
VCD 2,000 to 50,000 3" 1/8" to 1 1/4"

Inner Diameter Selection Instructions

The chart below indicates that with a single element size (1.5" outside diameter), different inner diameters are available. For example, it is possible to have a 1,000 lb load cell with up to 4 different I.D. options.
We utilize actual hole dimensions to provide some clearance; for example the 1/8" (-P) diameter dimension, the actual dimension is 0.128".

To choose an inner diameter, pick the capacity needed and add the order code to the model name, i.e. the PCD-1K-S is a 10,000 lb through hole load cell with an inner diameter of 3/8".

Order Code -P -Q -R -S
Nom. Hole Dia. 1/8" 3/16" 1/4" 3/8"
Actual Hole Dia. .128" .193" .266" .391"

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
PCD-100-P100 lb1/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-250-P250 lb1/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-500-P500 lb1/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-1K-P1,000 lb1/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-2K-P2,000 lb1/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-100-Q100 lb3/16" I.D. Donut Load Cell$520.00
increase
decrease
PCD-250-Q250 lb3/16" I.D. Donut Load Cell$520.00
increase
decrease
PCD-500-Q500 lb3/16" I.D. Donut Load Cell$520.00
increase
decrease
PCD-1K-Q1,000 lb3/16" I.D. Donut Load Cell$520.00
increase
decrease
PCD-2K-Q2,000 lb3/16" I.D. Donut Load Cell$520.00
increase
decrease
PCD-100-R100 lb1/4" I.D. Donut Load Cell$520.00
increase
decrease
PCD-250-R250 lb1/4" I.D. Donut Load Cell$520.00
increase
decrease
PCD-500-R500 lb1/4" I.D. Donut Load Cell$520.00
increase
decrease
PCD-1K-R1,000 lb1/4" I.D. Donut Load Cell$520.00
increase
decrease
PCD-2K-R2,000 lb1/4" I.D. Donut Load Cell$520.00
increase
decrease
PCD-100-S100 lb3/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-250-S250 lb3/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-500-S500 lb3/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-1K-S1,000 lb3/8" I.D. Donut Load Cell$520.00
increase
decrease
PCD-2K-S2,000 lb3/8" I.D. Donut Load Cell$520.00
increase
decrease

add to cart
