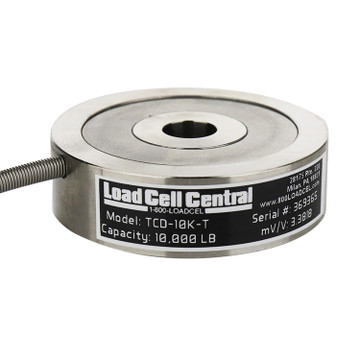

Model TCD: Thru Hole Load Cell

Thru Hole Load Cell

Model TCD through hole load cell features a 2" O.D., and I.D.'s from 1/8" to 5/8" with a smooth through hole design perfect for applications which require the load structure to pass directly through the load cell. Such applications include bolt force measurements and clamping forces. This through hole load cell performs within a maximum full scale non-linearity and hysteresis of 0.5%.  For optimum performance, these cells must be mounted between load surfaces which are machined flat and parallel.

Capacities

(lb)  250, 500, 1K, 2K, 3K, 5K, 7.5K, 10K

Brochures

Through Hole Load Cell Model Comparison

Model Capacity Range (lb) O.D. I.D. Range
RCD 50 to 500 1" 1/8" & 3/16"
PCD 100 to 2,000 1.5" 1/8" to 3/8"
TCD 250 to 10,000 2" 1/8" to 5/8"
VCD 2,000 to 50,000 3" 1/8" to 1 1/4"

Inner Diameter Selection Instructions

The chart below indicates that with a single element size (2" outside diameter), different inner diameters are available. For example, it is possible to have a 10,000 lb load cell with up to 6 different I.D. options.
We utilize actual hole dimensions to provide some clearance; for example the 1/8" (-P) diameter dimension, the actual dimension is 0.128".

To choose an inner diameter, pick the capacity needed and add the order code to the model name, i.e. the TCD-10K-R is a 10,000 lb through hole load cell with an inner diameter of 1/4".

Order Code -P -Q -R -S -T -V
Nom. Hole Dia. 1/8" 3/16" 1/4" 3/8" 1/2" 5/8"
Actual Hole Dia. .128" .193" .266" .391" .532" .656"

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.CapacityDescriptionStatusPriceQty.
TCD-250-P250 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-500-P500 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-1K-P1,000 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-2K-P2,000 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-3K-P3,000 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-5K-P5,000 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-7.5K-P7,500 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-10K-P10,000 lb1/8Call for Lead Time$860.00
increase
decrease
TCD-250-Q250 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-500-Q500 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-1K-Q1,000 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-2K-Q2,000 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-3K-Q3,000 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-5K-Q5,000 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-7.5K-Q7,500 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-10K-Q10,000 lb3/16Call for Lead Time$860.00
increase
decrease
TCD-250-R250 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-500-R500 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-1K-R1,000 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-2K-R2,000 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-3K-R3,000 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-5K-R5,000 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-7.5K-R7,500 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-10K-R10,000 lb1/4Call for Lead Time$860.00
increase
decrease
TCD-250-S250 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-500-S500 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-1K-S1,000 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-2K-S2,000 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-3K-S3,000 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-5K-S5,000 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-7.5K-S7,500 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-10K-S10,000 lb3/8Call for Lead Time$860.00
increase
decrease
TCD-250-T250 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-500-T500 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-1K-T1,000 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-2K-T2,000 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-3K-T3,000 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-5K-T5,000 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-7.5K-T7,500 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-10K-T10,000 lb1/2Call for Lead Time$860.00
increase
decrease
TCD-250-V250 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-500-V500 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-1K-V1,000 lb5/81 available$860.00
increase
decrease
TCD-2K-V2,000 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-3K-V3,000 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-5K-V5,000 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-7.5K-V7,500 lb5/8Call for Lead Time$860.00
increase
decrease
TCD-10K-V10,000 lb5/8Call for Lead Time$860.00
increase
decrease

add to cart

TCD load cell specifications and diagram
