DM-10-S2: DURAMOUNT 10-S2 Load Cell Mount

DURAMOUNT 10-S2 Load Cell Mount

The Duramount 10-S2 load cell weighing assembly is one of the most cost-effective load cell mounts available and comes in standard capacities of 25, 50, 75, 100, 150, 200, 250, 500, 1K, 2K, 2.5K LB. It is designed for all low profile light to medium capacity vessel weighing applications. The unique isolation pad compensates for vibration, thermal expansion and alignment problems. Duramount 10-S2 capacities from 25 to 250 lb. use the SBSA load cell, and capacities from 500 to 2,500 lb. use the LCS9 load cell.

Features

  • Capacities from 25 - 2.5K lb.
  • Neoprene isolation pad
  • Dynamic load compensation
  • Safe overload 150% F.S.
  • Safe side load 150% F.S.
  • Ultimate overload 300%
  • Optional stainless steel construction
  • 5 Year Warranty

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    DM-10-S2-25/25025 to 250 lbAnti-Vibration Load Cell Mount for Hoppers & Tanks, Stainless Steel$320.00
    increase
    decrease
    DM-10-S2-500500 lbAnti-Vibration Load Cell Mount for Hoppers & Tanks, Stainless Steel$320.00
    increase
    decrease
    DM-10-S2-1K1,000 lbAnti-Vibration Load Cell Mount for Hoppers & Tanks, Stainless Steel$320.00
    increase
    decrease
    DM-10-S2-1.5/2.5K1,500 to 2,500 lbAnti-Vibration Load Cell Mount for Hoppers & Tanks, Stainless Steel$320.00
    increase
    decrease
    DM-10-S2-4/5Kse4,000 to 5,000 lbAnti-Vibration Load Cell Mount for Hoppers & Tanks, Stainless Steel$320.00
    increase
    decrease

    add to cart

    Brochures

    Applications

    • Light to medium capacity
    • Filling machines
    • Tank weighing
    • Process weighing
    • Batching
    • Platform scales
    • Harsh environment
    • Conveyors
    • Food Processing
    • Bagging scales

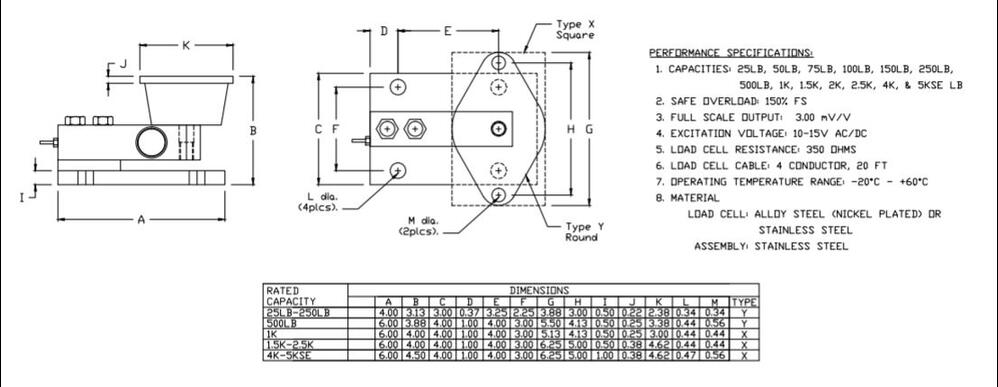

    duramount 10-s2 diagram and dimensions

    Product Bulletins
