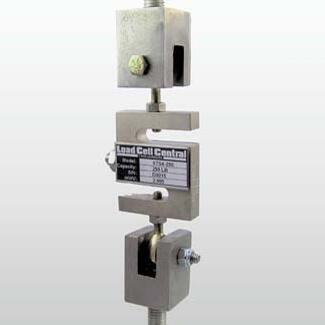

Model DM-18: Tension Load Cell Weighing Assembly

Tension Load Cell Weighing Assembly

The DURAMOUNT 18, combined with the XLS family of load cells, provides a wide range of tension weighing assemblies (capacities 50,100, 200, 300, 500, 750, 1K, 1.5K, 2K, 3K, 5K, and 10K pound) suitable for scale conversions, process control, hopper and tank batch weighing. Teflon insulation, combined with a bonding strap, protects the load cell from stray ground currents and electrostatic charges. Tension loading design assures correct load alignment and is ideal for low to medium capacity hopper and tank weighing.

The DURAMOUNT 18 can be used with the LCC-XLS load cells and most standard "S" type and tension canister load cells, including: 42HT, 43HT, 62HT, 263D, 182T, USP, UMP, BSP, 363, 9363, and many others.

Brochures

Features

  • Capacities 50 lbs. - 10K Ibs.
  • Adapts threaded rod to S Cell & tension canisters
  • Rod end ball joints
  • Teflon electrical isolation
  • Bonding ground strap
  • Tension loading
  • Zinc plated or FDA approved epoxy painted alloy steel
  • Stainless Steel available

Applications

  • Low to medium capacity
  • Process control
  • Hopper weighing
  • Scale conversions
  • Chemical plants
  • Batch weighing
  • Tank weighing
  • Process weighing
  • Food processing

Tanks and hoppers should have the suspension hardware attached above or at the load center of gravity, providing inherent stability, and reducing the need for restraints. Horizontal check rods or bumpers should be used to prevent swaying. The suspended assembly must be self-centering to prevent alternate load paths caused by check rods or rubbing against bumpers. Suspension using a single load cell requires the use of one or more swivels or check rods to prevent errors produced by torque on the load cell. Vertical safety rods or chains must be used to prevent damage in case of overload failure.
