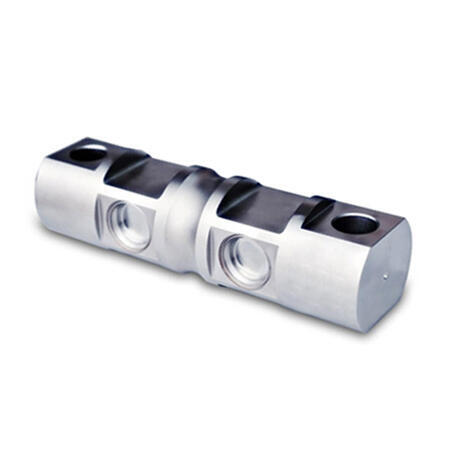

Model RVSF: Double Ended Shear Beam Load Cell

Double Ended Shear Beam Load Cell

Load Cell Central's model RVSF is designed for multiple load cell applications such as medium to high capacity bin, silo, and hopper weighing applications. The RVSF, constructed of a nickel plated high alloy tool steel and fully potted to IP65 to protect from water damage, is also available in a stainless steel, hermetically sealed version. When used with our Duramount 1-S3 mounting assembly it is the ideal choice for vessel weighing and batching systems.

Interchange for the 60058, 5103, 9103, 70210

For use with our Duramount 1-S3 weighing assembly.

Capacities

5K, 10K, 20K, 30K, 40K, 50K, 60K, 75K, 100K, 150K, 200K, 250K LB.



Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    RVSC-5K5,000 lbDouble Ended Shear Beam Load Cell$625.00
    increase
    decrease
    RVSC-10K10,000 lbDouble Ended Shear Beam Load Cell$625.00
    increase
    decrease
    RVSC-20K20,000 lbDouble Ended Shear Beam Load Cell$625.00
    increase
    decrease
    RVSC-30K30,000 lbDouble Ended Shear Beam Load Cell$725.00
    increase
    decrease
    RVSC-40K40,000 lbDouble Ended Shear Beam Load Cell$725.00
    increase
    decrease
    RVSC-50K50,000 lbDouble Ended Shear Beam Load Cell$725.00
    increase
    decrease
    RVSC-60K60,000 lbDouble Ended Shear Beam Load Cell$725.00
    increase
    decrease
    RVSC-100K100,000 lbDouble Ended Shear Beam Load Cell$1,450.00
    increase
    decrease
    RVSC-150K150,000 lbDouble Ended Shear Beam Load Cell$1,450.00
    increase
    decrease
    Additional Options
    Part No.DescriptionPriceQty.
    DM-1-S3-5/20KVessel Scale Load Cell Mount, Alloy Steel$295.00

    DM-1-S3-30/60KVessel Scale Load Cell Mount, Alloy Steel$795.00

    DM-1-S3-100/150KVessel Scale Load Cell Mount, Alloy Steel$1,095.00

    add to cart

    Brochures

    RVSF Brochure

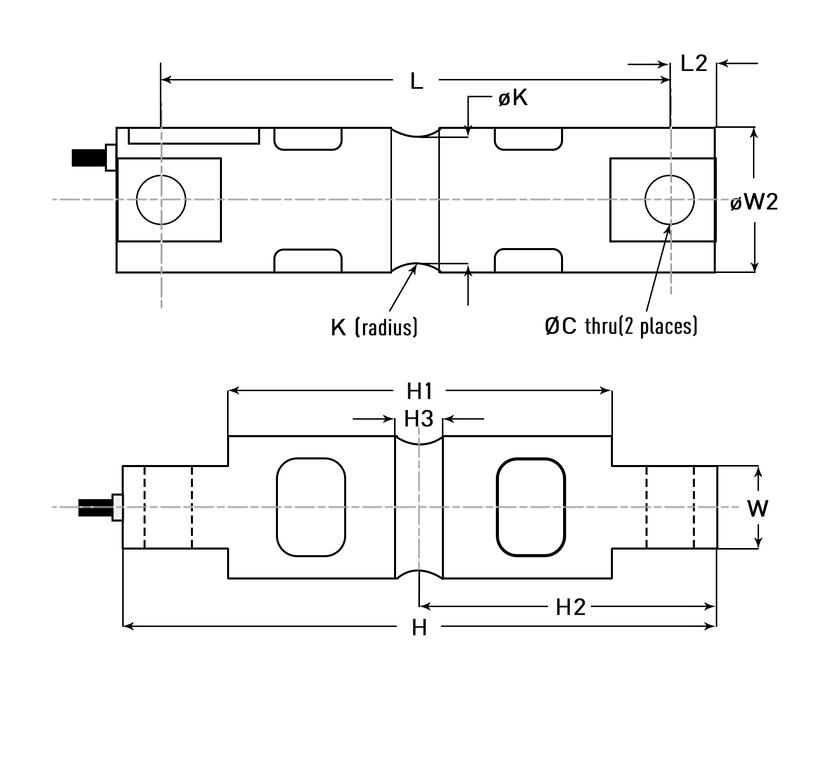

    rvsf load cell diagram
