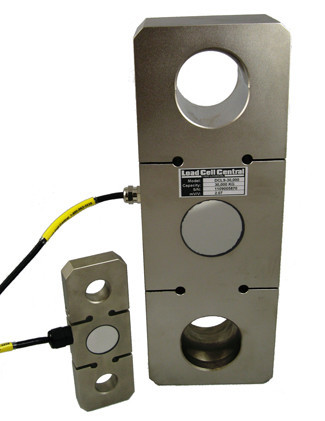

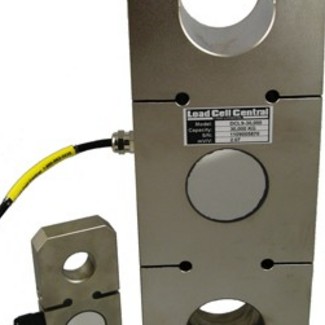

Model DCL10: Crane Scale & Tension Link Load Cell

Crane Scale & Tension Link Load Cell

Load Cell Central's versatile DCL10 Tension Link load cell is designed to be coupled with a Load Cell Central digital indicator or signal conditioner to become a full weighing system with options like digital displays, large 6” remote displays, 4-20mA output, 0-10V output, RS232, RS485, relay control, or data logging.  When ordered with a Load Cell Central calibration, you will receive a full scale calibration, complete with a 5 point run you can rely on.  With high accuracy and a rugged design, the DCL10 will save you time and money.. Employed in a wide variety of lift tests, towing tension, cable tension, crane scale, hoist scale, and tensile testing systems, the DCL10's rugged and convenient link design has lent itself to a never-ending list of applications. Hermetically sealed load cells for use in extreme environments including submersible applications are also available.

Capacities

1,000, 2,000, 5,000, 10,000, 20,000, 30,000, 50,000, 75,000, 100,000 kg (custom capacities also available)

 graphic promoting free quote for custom solutions from load cell central

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
DCL10-1t1,000 kgAlloy Steel Tension Link Load Cell$440.00
increase
decrease
DCL10-2t2,000 kgAlloy Steel Tension Link Load Cell$475.00
increase
decrease
DCL10-5t5,000 kgAlloy Steel Tension Link Load Cell$510.00
increase
decrease
DCL10-10t10,000 kgAlloy Steel Tension Link Load Cell$850.00
increase
decrease
DCL10-20t20,000 kgAlloy Steel Tension Link Load Cell$1,310.00
increase
decrease
DCL10-30t30,000 kgAlloy Steel Tension Link Load Cell$2,175.00
increase
decrease
DCL10-50t50,000 kgAlloy Steel Tension Link Load Cell$2,700.00
increase
decrease
DCL10-75t75,000 kgAlloy Steel Tension Link Load Cell$5,350.00
increase
decrease
DCL10-100t100,000 kgAlloy Steel Tension Link Load Cell$5,565.00
increase
decrease
$
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
G2130-1tCrosby Shackle for DCL10-1t Load Cell$23.00

G2130-2tCrosby Shackle for DCL10-2t Load Cell$40.00

G2130-6.5tCrosby Shackle for DCL10-5t Load Cell (Do Not Exceed Load Cell Capacity)$115.00

G2130-12tCrosby Shackle for DCL10-10t Load Cell (Do Not Exceed Load Cell Capacity)$280.00

G2130-25tCrosby Shackle for DCL10-20t Load Cell (Do Not Exceed Load Cell Capacity)$655.00

G2130-35tCrosby Shackle for DCL10-30t Load Cell (Do Not Exceed Load Cell Capacity)$945.00

G2140-55tCrosby Shackle for DCL10-50t Load Cell (Do Not Exceed Load Cell Capacity)$1,700.00

add to cart

Brochures

Options

  • Options Cable Length
  • Thru-Hole diameter
  • 0-10V or 4-20mA output
  • Telemetry system for wireless load cell operation
crane load cell scale
