Model WL-CTL2: Wireless Crane Scales & Tension Link Load Cells

Wireless Crane Scales & Tension Link Load Cells

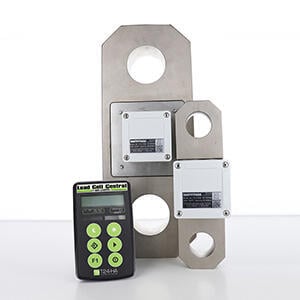

The WL-CTL2 wireless tension link load cell is ideal for weighing and lifting applications such as with cranes, hoists, and winching, that may not lend themselves to standard cabled load cells--- where the cable could get damaged or where it may not be safe to be close to the load cell during a lift. When used with the WDD1 wireless LCD display or the WSLS-S1-2 receiver the load cell has a wireless communication “line of sight” range of 100-200 meters depending on the environment. The battery life depends on internal settings ranging from 24 hours up to 5 years. The load cell is manufactured from heat treated alloy steel and is sealed to IP66 which makes it suitable for use outdoors.

We have a variety of crane load cells and wireless scales available.

Capacities

10,000; 25,000; 50,000; 75,000; 100,000; 150,000 lbs

Higher capacity and stainless steel load cells are also available.

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
WL-CTL2-10K10,000 lbWireless Tension Link Load Cell / Crane Scale$2,359.00
increase
decrease
WL-CTL2-25K25,000 lbWireless Tension Link Load Cell / Crane Scale$2,425.00
increase
decrease
WL-CTL2-50K50,000 lbWireless Tension Link Load Cell / Crane Scale$3,138.00
increase
decrease
WL-CTL2-75K75,000 lbWireless Tension Link Load Cell / Crane Scale$3,169.00
increase
decrease
WL-CTL2-100K100,000 lbWireless Tension Link Load Cell / Crane Scale$3,203.00
increase
decrease
WL-CTL2-150K150,000 lbWireless Tension Link Load Cell / Crane Scale$4,254.00
increase
decrease
Custom WL-CTL2Custom$
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
T24-HSSingle Channel Wireless Handheld Display$566.00

T24-HAUp to 12 Channel Wireless Display with Summing Feature$827.00

TR-100-CALeather Carry Case for T24-HS & T25-HA$53.00

T24-BSUEWireless Receiver for Computer, USB Connection Allows Viewing & Logging Load Cell Data$281.00

G2130-6.5tCrosby Bow Shackle for WL-CTL2-10K lb (Do Not Exceed Load Cell Capacity)$72.20

G2130-13.5Crosby Bow Shackle for WL-CTL2-25K lb (Do Not Exceed Load Cell Capacity)$231.00

G2130-25tCrosby Bow Shackle for WL-CTL2-50K lb (Do Not Exceed Load Cell Capacity)$418.00

G2130-35tCrosby Bow Shackle for WL-CTL2-75K lb (Do Not Exceed Load Cell Capacity)$602.00

G2140-55tCrosby Bow Shackle for WL-CTL2-100K lb (Do Not Exceed Load Cell Capacity)$1,059.00

G2140-85tCrosby Bow Shackle for WL-CTL2-100K lb (Do Not Exceed Load Cell Capacity)$1,813.00

1450Pelican Carry Case for WL-CTL2-10K & 25K for Load Cell and Indicator$175.00

1550Pelican Carry Case for WL-CTL2-50K & 75K for Load Cell and Indicator$260.00

1550-HDFPelican Carry Case with High Density Custom Foam for WL-CTL2-100K for Load Cell and Indicator$410.00

1560-HDFPelican Carry Case with High Density Custom Foam for WL-CTL2-150K for Load Cell and Indicator$515.00

add to cart



diagramBrochures

photoFeatures

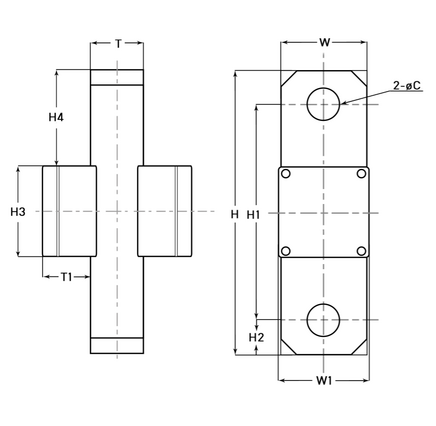

dimensions

  • Combined error 0.25% of full scale
  • Operating temp. -35 to 65C
  • Wide range of capacities
  • Safe overload 200% of full scale
  • Toll Free Technical Support 1-800-LOADCEL
  • Ultimate overload 500% of full scale
  • Up to 200 meters wireless range

Options

  • WDD1 LCD display (pictured above)
  • Custom capacities
  • WSLS-S1-2 Receiver to work with any standard load cell display
  • Shackles
  • Stainless steel load cell
  • Pelican® carry case
