Center of Gravity Measurement Load Cell System

Load Cell Central, a designer and manufacturer of custom weighing systems, load cells, and other cutting-edge electronic weighing and force measurement equipment, now has available a high performance, cost-effective means of automatically finding and monitoring the center of gravity for any load capacity.

A proprietary, proven design, the PBI-CG is in use in a variety of applications including:

  • Balancing structures on ships
  • Balancing aircraft loads
  • Monitoring heavy, moving structures such as radio telescope antennas
  • Determining lifting points on large asymmetrical loads



Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    Custom SystemCustom$
    increase
    decrease

    add to cart



    Eliminating human error, the unit conveniently takes over the calculations for you, and immediately pinpoints and displays the center of gravity -- in terms of distance coordinates from known reference points on your structure -- for both lateral (side to side) and longitudinal (front to back) dimensions. Individual load cell weight readings are also displayed.

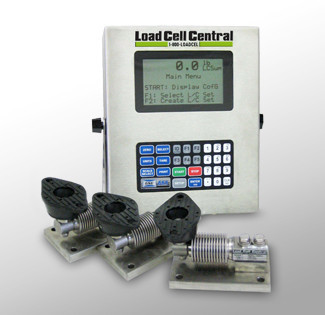

    To enable a one-time, permanent setup for each load type (i.e., any load for which load cells remain in the same position), the unit stores multiple craft settings for convenient recall. The system is expandable from four low profile cells with base plates and a force acquisition/computational instrument.
